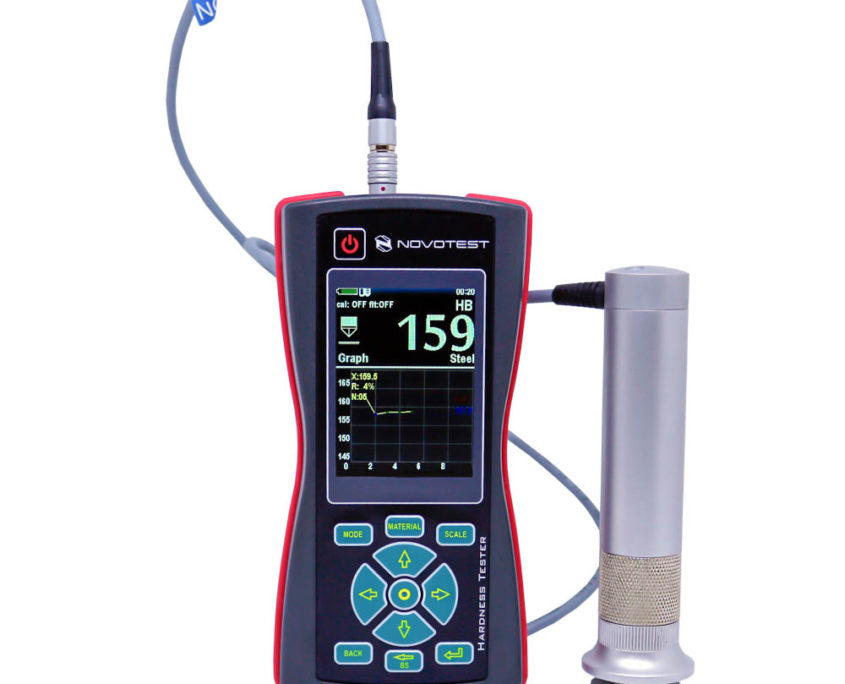

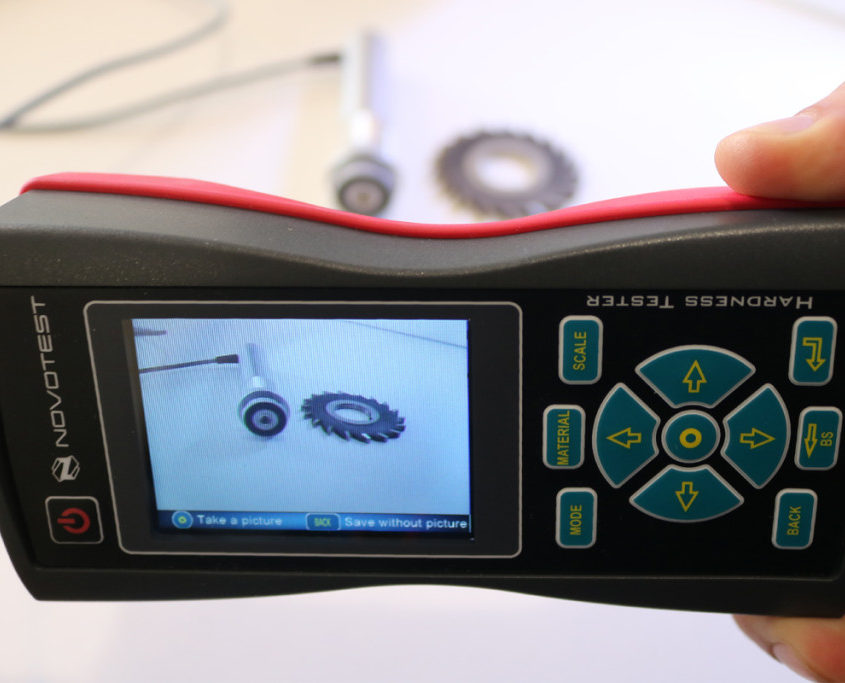

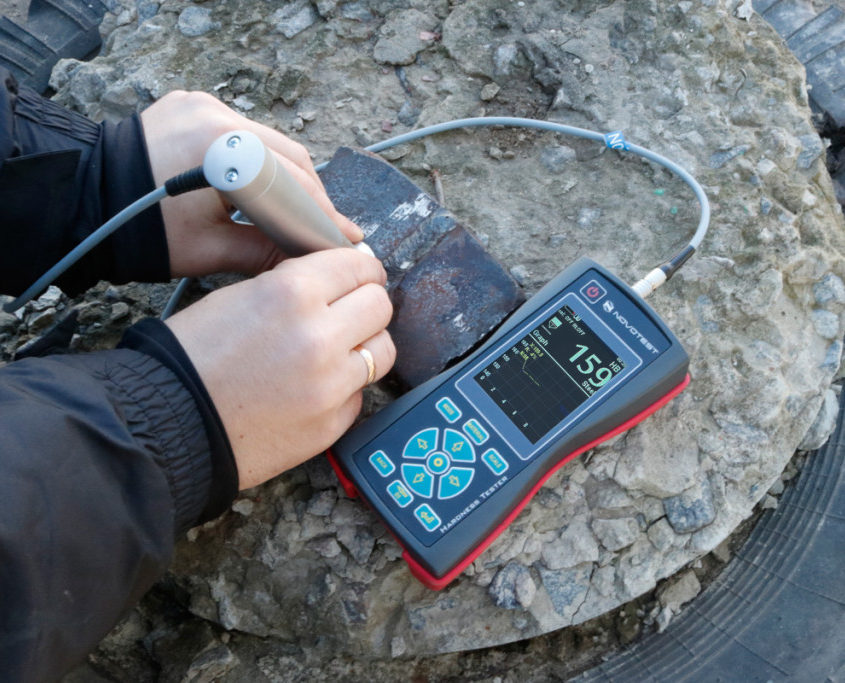

UCI Hardness Tester NOVOTEST T-U3 also comes with special software for operate with the device archive and subsequent data transfer for processing in convenient formats. The most modern and advanced ultrasonic device TM NOVOTEST is UCI Hardness Tester NOVOTEST T-U3, the main advantages of the device are:
The most popular portable hardness tester in the world is the Leeb hardness tester, however, there are tasks that using this method is very difficult or even impossible to solve. This is due to the physics of the method, which assumes the massiveness of the testing object, to ensure the inertness of the product when the Leeb’s impact body hits the surface with a given force.
In order to solve a wider range of tasks on the rapid measurement of metal hardness, our company offers hardness testers that implement the method of ultrasonic contact impedance (UCI) in accordance with ASTM A1038. A vibrating rod (mechanical resonator) with a diamond tip acts as an indenter in these devices, when it indent into the material, the base frequency of the resonator changes, on the basis of which the hardness is calculated. This method has proven itself around the world and has been used in industry for over 50 years.
Advantages:
- Hardness measurement of any mass products with a thickness more than 1 mm – inaccessible to the dynamic (Leeb) hardness testers (small parts, thin-walled structures, pipes, tanks, steel sheets, articles of complex shape, hardness control of metal coatings, etc.)
- Measuring the hardness of the surface hardened layer
- Small imprint after measuring (mirror surfaces of shafts necks, blades, gear teeth, etc.)
- Wide range of hardness testing
- Various measurement modes
- Calibration of any scale in any range
- Convenience and ease for measurement
- Optimized number of buttons
- Large full color graphic display with bright back-lighting
- Calibrations stored in memory of probe
- Extended temperature range (frost, down to – 40°C)
- Internal memory and communication with PC
- New, intuitive menu with tips on the buttons
- Optional wireless mini printer
- Water resistant case
- Rubber protected bumper
- Has different operating modes:
*Graph – the mode of building of graph
*Histogram – the mode of building of histogram
*Statistics – the mode of statistic
*Smart – the mode of filtering of incorrect measurements
